ESD BAGS

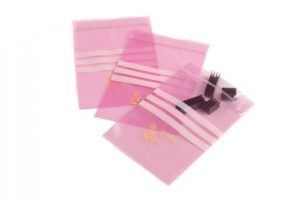

Pink Antistatic Bag (Open Top) / (Ziplock)

Pink Antistatic Bag Ziplock

Pink Antistatic Bag open top

  • Our pink antistatic bags are blow-molded with anti static
  • additives from LDPE and LLDPE
  • Available in different colors, thicknesses, sizes and printed
  • with different designs according to customers’ requirements
  • Soft texture and flexible
  • Surface resistance of 108-1011Ω
  • Static release time is >2 secs



Pink anti static bags have the ability to dissipate a static chargeto ground preventing static charge building up on the packageor device. The material is also antistatic and will not charge upwhen rubbed against other materials.
Please note these bags have no shielding ability. A static field or discharge occurring outside the bag will penetrate the bag and damage electronics inside.

Additional Notes:
We recommend that all of our pink anti static bags be used within 2 years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21°C -23°C and relative humidity is 45 – 50%.

Configuration(s):
Our bags are available in custom sizes or in several industry standard sizes. Bags are offered with a single seal or bottom fold, extruded from a PE tube. The bags are provided with our standard artwork or your company’s flexographically printed logo (minimum order qty’s apply). We are also able to offer the bags in different colours, or tints upon request (again min order qty’s apply).

Pink Anti Static Bubble Bags

For packaging non ESD items within an ESD protected area.

Features:

  • Blow-molded with anti static additives from LDPE and LLDPE
  • The sealed air bubble offers superior cushioning and shock proof function
  • Standard colour: Pink, but can be custom made in different colours and sizes according to clients requirements (MOQ applies)
  • Soft texture and flexible material
  • Manufacturing method: Two layer extrusion with calendar role to thermoform bubble
  • Low cost
  • Keeps inside packed contents free from damage by electrostatic
  • Antistatic bubble film will not produce electrostatic charges during handling. Static charge is dissipated over the surface of the film preventing discharge onto the electronic device packaged.

Configuration(s):
Our bags are available in custom sizes or in several industry standard sizes.
Bags are offered heat sealed along the three edges and provided with a low static peel and seal lip.



Pink Anti Static Bubble Film

For packaging non ESD items within an ESD protected area.

  • Blow-molded with anti static additives from LDPE and LLDPE
  • The sealed air bubble offers superior cushioning and shock proof function
  • Standard colour: Pink, but can be custom made in different colours and sizes according to clients requirements (MOQ applies)
  • Soft texture and flexible material
  • Manufacturing method: Two layer extrusion with calendar role to thermoform bubble
  • Low cost
  • Keeps inside packed contents free from damage by electrostatic
  • Antistatic bubble film will not produce electrostatic charges during handling. Static charge is dissipated over the surface of the film preventing discharge onto the electronic device packaged.



Static Shielding Bag (Open Top) / (Ziplock)

Static Shielding Bag Open Top

Static Shielding Bag Ziplock

  • Metal “Faraday cage” layer shields products from electric energy inside and prevents static build-up
  • Four layer protection guards against charges inside and out
  • Semi transparent for easy content identification
  •  Surface resistance of 108-1011Ω
  • Conforms to MIL-PRF-81705D Type III, EIA 625, EIA 541, ANSI/ESD S-20.20
  • Custom sizes and print available on request
  • Suitable for packing electronic products which are sensitive to static, eg PCB’s, IC integrated circuit , CD driver, HD etc

Additional Notes:
We recommend that all of our static shielding bags be used within 2 years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21°C -23°C and relative humidity is 45 – 50%.

Construction:
Our static shielding bags are constructed in four layers, consisting of a static dissipative polyester outer layer and a static dissipative polyethylene inner layer with a centre metallised shield layer. Our bags are manufactured from industry approved polyester and polyethelene laminates. The polyester dielectric works with the metal layer to provide a Faraday effect, the metal layer preventing penetration from damaging electrostatic fields. The specially processed polyethelene keeps tribocharging to a minimum.

Configuration(s):
Our bags are available in custom sizes or in several industry standard sizes. Bags are offered in a 2-seal configuration and bottom fold, with our standard flexographically printed artwork. Please note any bags that are longer than 24” will have a 3rd seal along the bottom edge. Our bags can also be personalised with your company logo on any bespoke orders.

Standard Bag Artwork:
Our static shielding bags are produced with the following sample artwork as standard. For further information on bespoke/printed orders, please contact one of our sales team. Please note there is a MOQ of 20,000 bags on all printed bags.

Bubbleshield Bag

STATIC Shielding Bubble Laminate (Mil B 81705) The lamination of an ESD transparent static shielding bag film laminated to an anti-static polyethylene Bubblewrap provides both physical and anti-static protection. The outer layer is an ESD transparent static shielding film. This material forms a Faraday cage around the product, offering superior static shielding protection, while the inner layer of pink anti-static bubblewrap gives excellent physical protection. Both of these materials are qualified to Military Standard B 81705.

Features:

  • Provides ‘Faraday Cage’ protection against ESD
  • Conforms to MIL-PRF-81705D Type III, EIA 625, EIA 541, ANSI/ESD S-20.20
  • Semi transparent finish
  • Custom sizes and printing available on request
  • This product is fully reusable, protecting both your product and the environment

Configuration(s):
Our bags are available in custom sizes or in several industry standard sizes. Bags are offered heat sealed along the three edges and provided with a low static peel and seal lip.

Product Code: Description: Size (inches): Size (mm): Additional Notes:
4 x 6 – 102 x 152 Pack of 100
6 x 10 – 152 x 254 Pack of 100
8 x 10 – 203 x 254 Pack of 100
10 x 12 – 254 x 305 Pack of 100
12 x 14 – 305 x 355 Pack of 100
12 x 20 – 305 x 508 Pack of 100
14 x 18 – 406 x 457 Pack of 100
16 x 20 – 406 x 508 Pack of 100
18 x 18 – 457 x 457 Pack of 100



Moisture Barrier Bag

  • Protects electronics from moisture and static damage
  • Opaque and light tight ensuring the inside item can not been seen from outside
  • Available in three layer or four layer structures
  • Firm lamination and hot sealing offers superior resistance of vapour and oxygen
  • Surface resistance of 108-1011Ω
  • Customized printing is available
  • Applicable to pack electronic products which are sensitive to moisture and static, such as PC board, IC integrated circuit,
  • CD drivers, HD etc.
  • Available in 3.6 / 4.4 and 6.1Mil thicknesses
  • Flexible structure & easy to vacuum seal

Additional Notes:
We recommend that all of our moisture barrier bags be used within 2 years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21°C -23°C and relative humidity is 45 – 50%.

Standard Construction:Our moisture barrier bags are constructed in 3 layers. The bag features an antistatic metallized polyester outer layer and an anti static inner layer. In between are layers of polyethylene, nylon and an aluminium foil shield.

Configuration(s):Our bags are available in custom sizes or in several industry standard sizes.Bags are offered in a 3-seal configuration, with our standard flexographically printed artwork. Our bags can also be personalised with your company logo on any bespoke orders.

Standard Bag Artwork:
Our moisture barrier bags are produced with the following sample artwork as standard. For further information on bespoke/printed orders, please contact one of our sales team. Please note there is a MOQ of 20,000 bags on all printed bags.

Note: All of our moisture barrier bags are batch coded for QC traceability.



Black Conductive Bag

  • Black conductive bags made from blow molded LDPE with carbon
  • The black bag is light tight and effectively avoids accumulation of electric charge on the bag and its contents
  • Protects contents from damage of electromagnetic wave and static
  • This product can be heat sealed and offers medium level static protection
  • Surface resistance is 104-106Ω

Note: Other sizes available upon request.

Additional Notes:
We recommend that all of our black conductive bags be used within 2 years from the date of manufacture. Store this product in its original packaging in a climate-controlled environment where temperature ranges from 21°C – 23°C and relative humidity is 45 – 50%.

Construction:
Our black conductive bags are constructed from a conductive material made out of a 4 mil single layer of carbon loaded polyethylene, creating a Faraday Cage effect. Conforms to military specification MIL-PRF-81705D Type II.

Configuration(s):
Our bags are available in custom sizes or in several industry standard sizes. Bags are offered with a single seal or bottom fold, extruded from a PE tube. The bags are provided with our standard artwork or your company’s flexographically printed logo (minimum order qty’s apply).

Standard Bag Artwork:
Our black conductive bags are produced with the following sample artwork as standard. For further information on bespoke/printed orders, please contact one of our sales team. Please note there is a MOQ of 20,000 bags on all printed bags.
