PASTA LUTOWNICZA

Bezołowiowa / lead free

• No Clean
• Halide Free
• Low Voiding

Alloy Powder Types:

• BiSn42
• SnAg3.0Cu0.5
• SnAg0.3Cu0.7

Flux types:

• HF Halogen free
• HL Low Halogen content < 1%
• H Halogen containing

Powder sizes (standard):

• Type 3 (20-45µm)
• Type 4 (20-38µm)
• Type 5 (15-25 µm)
• Type 6 (5-15µm)

Alloy	Type	PN	Flux	TDS Technical Datasheet
BiSn42	Lead-Free, Low Temperature	PF602-P	ROL1
BiSn42	Lead-Free, Low Temperature	PF602-P30	ROL0
SnAg3.0Cu0.5	Lead-Free	PF606-P	ROL1
SnAg3.0Cu0.5	Lead-Free	PF606-P25	ROL0
SnAg3.0Cu0.5	Lead-Free	PF606-P30	ROL0
SnAg3.0Cu0.5	Lead-Free Low Viscosity	PF606-P214	ROL0
SnAg3.0Cu0.5	Lead-Free Ultra Low Viscosity	PF606-P214L	ROL0
SnAg3.0Cu0.5	Lead-Free, Water Soluble	PF606-PW	ROL0
SnAg0.3Cu0.7	Lead-Free	PF629-P	ROL1
SnAg0.3Cu0.7	Lead-Free	PF629-P30	ROL0

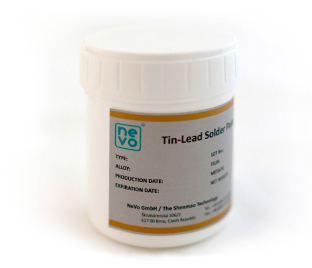

Ołowiowa / tin lead

• No Clean
• Low Halide Content
• Low Voiding

Powder types:

• Sn62Ag2Pb36
• Sn63Pb37
• Sn10Pb88Ag02

Flux types:

• ROL1 low halide content flux
• ROL0 halogen free flux

Powder sizes (standard):

• Type 3 20-45µm
• Type 4 20-38µm

Alloy	Type	PN	Flux	TDS Technical Datasheet
Sn62Ag2Pb36	Tin-Lead	SH-6209RMA	ROL1
Sn62Ag2Pb36	Tin-Lead, Water Soluble	SH-6209WA	ROL1
Sn63Pb37	Tin-Lead	SH-6309RMA	ROL1
Sn10Pb88Ag2	Tin-Lead, High Temperature	SH-10882HM	ROL0

Specjalne

Na bazie rozpuszczalnych w wodzie fluxów / water soluable

Alloy Powder Types:

• SnAg3.0Cu0.5

Flux types:

• Water Soluble

Powder sizes (standard):

• Type 3 20-45µm
• Type 4 20-38µm

Niskotemperaturowa pasta lutownicza SMT/ low temperature

Powder types:

• Sn42Bi

Flux types:

• Halogen Free

Powder sizes (standard):

• Type 3 20-45µm
• Type 4 20-38µm

Alloy	Type	PN	Flux	TDS Technical Datasheet
SnAg3.0Cu0.5	Lead-Free, Water Soluble	PF606-PW	ROL0
BiSn42	Lead-Free, Low Temperature	PF602-P	ROL1
BiSn42	Lead-Free, Low Temperature	PF602-P30	ROL0
Sn10Pb88Ag2	High Temperature Tin Lead	SH-10882HM	ROL0
